The VinPost Repair is Fast, Stronger and Easier to install.
It will save you time & money!
VinPost Repair posts offer the vigneron the ability to repair broken pine posts by reusing the existing pine post.
The VinPost installation process takes the impact point away from the top of the post and locates it to the side of the post, away from the canopy and the trellising.

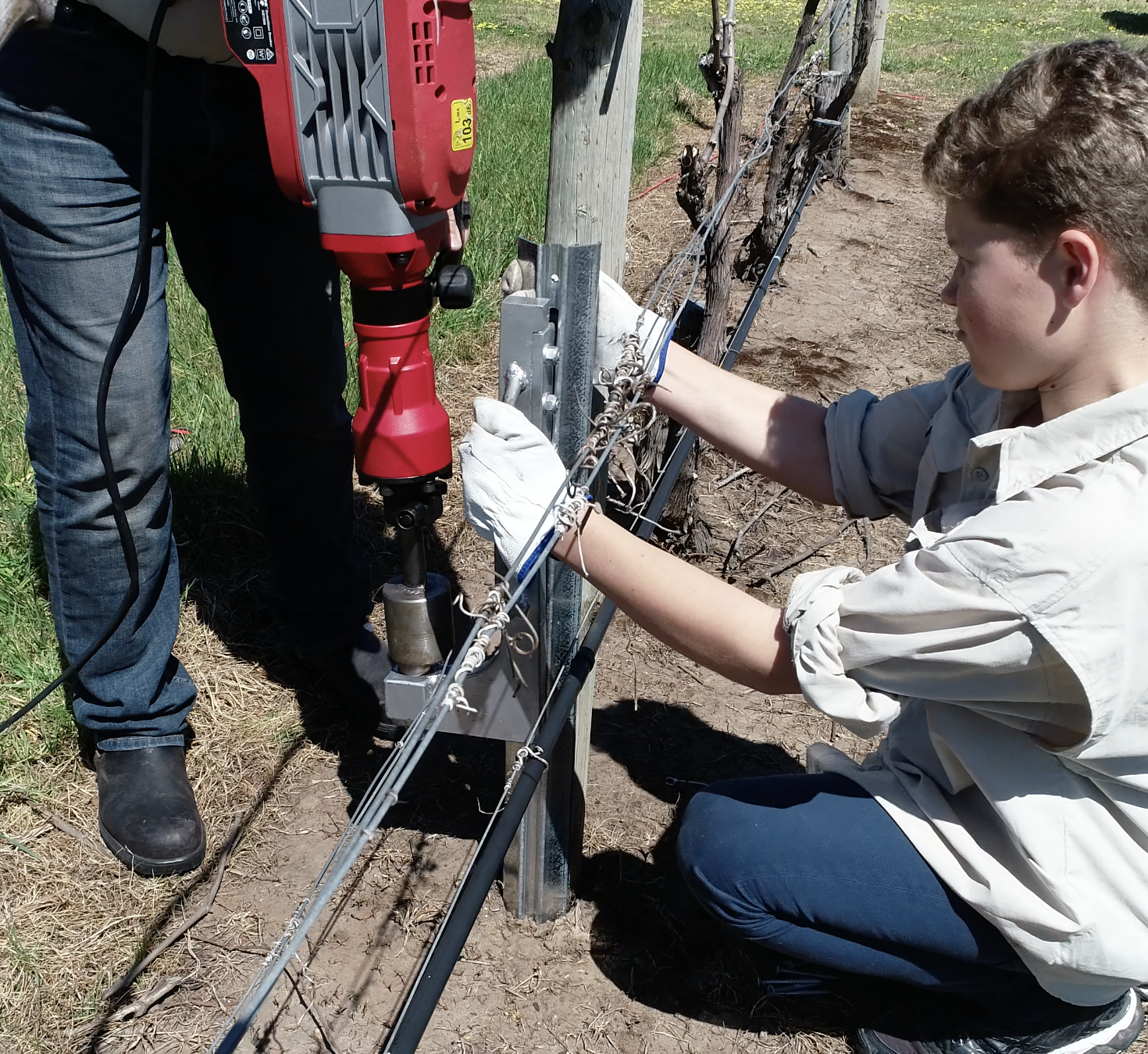

The Vinpost repair is driven into the ground alongside the broken post using the “J-Wack” and a Jackhammer. The broken post is then fixed into position screws.
The CAD designed shape allows the VinPost Repair to fit snugly around 1/3 of the broken post. Its unique W Shape allows the wings to expand around larger diameter pine posts whiles pulling in snugly around thinner pine posts.
Made from 2 mm thick Australian made galvanised steel and fixed into position with 75mm hex head galvanised screws, VinPost pulls in neatly around the base of the broken pine post. With no exposed sharp edges it will reduce damage to the harvester.
VinPost Repair posts offer the vigneron the ability to quickly, safely and efficiently repair broken pine posts by reusing the existing pine post & clips. The VinPost Repair reduce the Time, Cost, Damage to the canopy and the risk of injury. Download the brochure.
The Vinpost Repair is simply the most secure and cost effective way to repair broken pine vineyard posts.
The VinPost Repair posts offer the vigneron the ability to quickly, safely and efficiently repair broken pine posts by reusing the existing pine post & clips.
CAD designed, for maximum strength, the unique ‘W’ shape offers rigidity to the VinPost Repair beyond anything on the market. Additionally the VinPost Repairs design ensure it hugs and grips onto the broken pine post. This conceals the sharp edges of the steel post.
The “W” shape offers other unique features that none of the competition offer. When the screws are inserted into the broken post they do so at a 90 degree angle. This stops the timber post pulling away from the VinPost when load is applied to the timber post.
Additionally the “W” shape spreads around larger posts and pulls in tight around thinner posts. One of the most significant beneficial feature of the VinPost Repair is the manner in which they can be installed. Both the Repair and Sentinel can be installed with the “J-Wack”. This allows both the VinPost Repair & the VinPost Sentinel to be installed without damage to the canopy or the trellising.
Why the VinPost Repair.
- 250 VinPost per Bundle (QDA available)
- Free “J-Wack” with your first bundle ordered.
- FREE Freight for orders over 1000 posts.
- CAD designed for Max strength
- Vinpost is 1100mm long so it offers stronger hold both in the ground and up the post.
- Vinpost hugs the broken post, which makes it more secure.
- Vinpost has no exposed sharp edges, so it’s less likely to damage machinery.
- Vinpost’s pointed end ensures reduced resistance during installation.
- Vinpost is driven 5-600mm into the ground,
- Vinpost’s offers 10 screws holes offer superior hold.
- The Vinpost “J-Wack” takes the impact point away from the canopy and wires, allowing repairs right up to harvest.
- We recommend Bremick 75mm galvanised batten screws .
- Vinpost Reuses the existing wire trellis and broken post.
Reduces the time, reduces the cost, reduces damage to the canopy and the reduced risk of injury, makes the Vinpost repair solution simply the best option for repairing broken pine vineyard posts.
